Exploring the drainage basin system is crucial for understanding Earth's hydrological processes. This system is a dynamic interaction of various elements, functioning as an open system with distinct inputs, outputs, flows, and stores.
Understanding the Drainage Basin as an Open System
A drainage basin, also known as a catchment area, is an area of land where precipitation collects and drains off into a common outlet. This system is characterized by:
- Inputs: These are primarily from precipitation in various forms - rain, snow, sleet, or hail.
- Outputs: Water leaves the basin mainly through evaporation, transpiration, and the flow of water into other water bodies.
- Flows: The movement of water within the basin includes processes such as throughflow, overland flow, and base flow.
- Stores: These are areas within the basin where water is held, like in vegetation, soil, aquifers, and the cryosphere.
Precipitation: Types and Intensity
Types of Precipitation
Precipitation, the primary input in the drainage basin system, varies in form:
- Rain: The most common form, consisting of liquid water droplets.
- Snow: Composed of ice crystals, occurring predominantly in cold climates.
- Sleet: Small ice pellets, typically forming when rain freezes as it falls.
- Hail: Hard ice pellets, usually associated with severe weather conditions.
Intensity and Distribution
The impact of precipitation on a drainage basin depends on its intensity and distribution:
- Intensity: It's the rate of precipitation, affecting surface runoff and infiltration.
- Spatial Distribution: Influenced by geographic factors like mountains, it dictates where and how much precipitation an area receives.
- Temporal Distribution: This refers to the timing and duration of precipitation events, from short-lived downpours to prolonged rainfall.
Evaporation and Transpiration
These processes represent the primary outputs from a drainage basin:
- Evaporation: Water changes from liquid to gas, occurring over water bodies, soil, and other wet surfaces.
- Transpiration: The process by which moisture is carried from roots to small pores on the underside of leaves, where it changes to vapour and is released into the atmosphere.
Infiltration, Throughflow, and Overland Flow
Infiltration
- The downward movement of water from the surface into the soil.
- Influenced by soil texture, structure, and moisture content.
Throughflow
- Horizontal movement of water through the soil layer.
- Affected by soil type, vegetation cover, and landscape slope.
Overland Flow
- Water that flows over the surface of the ground.
- Commonly occurs in urban areas with impervious surfaces or in natural settings when the ground is saturated or frozen.

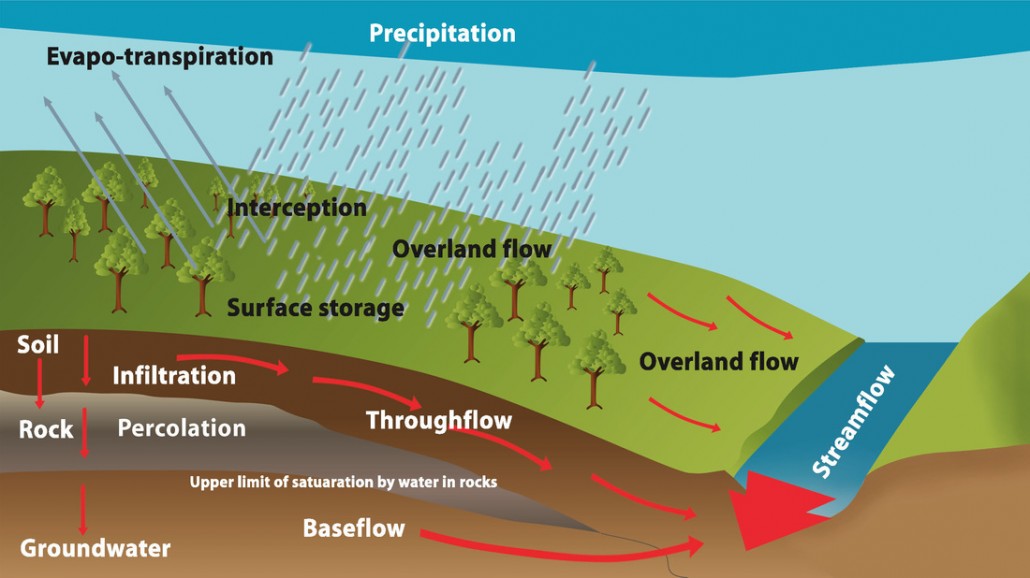

Image courtesy of ydrt.org.uk
Base Flow and Storage Components
Base Flow
- This is the portion of the river's flow that is sustained during dry periods, fed by groundwater.
- Vital for maintaining river ecosystems during droughts.
Storage Components
- Vegetation Storage: Plants store water in their tissues and release it through transpiration.
- Soil Storage: Soil can hold significant amounts of water, affecting both surface and groundwater flow.
- Aquifers: Underground layers where groundwater is stored and moves through permeable materials like gravel, sand, and silt.
- Cryosphere: Consists of frozen water parts, including glaciers and ice caps, important for long-term freshwater storage.
This comprehensive understanding of the drainage basin system is fundamental in geography, offering insights into water management, ecological balance, and climate change impacts. Knowledge of these processes aids in predicting floods, managing water resources, and understanding geomorphological changes in the landscape.
FAQ
Aquifers interact with river systems in a drainage basin through the processes of recharge and discharge. Recharge occurs when water from precipitation and surface water infiltrates the ground, reaching the aquifer. This process is vital for replenishing groundwater stores. Discharge happens when groundwater flows out of the aquifer, contributing to the base flow of rivers, especially during dry periods. This interaction is critical for maintaining river flows throughout the year, supporting ecosystems, and providing water for human use. The health of an aquifer and its ability to sustain river systems can be affected by over-extraction of groundwater and changes in land use that alter recharge rates.
The cryosphere, comprising all frozen water parts of the Earth like glaciers, ice caps, and permafrost, plays a vital role in water storage and release in a drainage basin. It acts as a long-term storage of freshwater, locking it in solid form. Seasonal melting of parts of the cryosphere contributes to river flow, particularly in spring and summer, and is crucial for maintaining water availability during warmer months. The rate of melting is influenced by climatic conditions and can be significantly affected by climate change. Changes in the cryosphere, such as glacier retreat, can have long-term impacts on water availability and distribution within the basin, affecting water resources and ecosystem health.
Different types of precipitation - rain, snow, sleet, and hail - affect the hydrological cycle in a drainage basin in various ways. Rain, being the most common, directly contributes to surface runoff, infiltration into the soil, and immediate input into rivers. Snow, on the other hand, often leads to a delayed response in the hydrological cycle, as it may accumulate over time and release water slowly during melting periods. This can lead to seasonal variations in river flow and water availability. Sleet and hail have lesser impact but can contribute to surface runoff and temporary water storage on the ground. The type and intensity of precipitation significantly influence flood risks, groundwater recharge, and overall water balance in a drainage basin.
The rate of infiltration in a drainage basin is influenced by several key factors. Soil texture plays a crucial role; sandy soils with larger pore spaces allow faster infiltration, while clay soils with smaller pores slow it down. Soil moisture is another determinant; dry soil initially absorbs water quickly, but as it becomes saturated, the infiltration rate decreases. Vegetation cover can enhance infiltration by protecting the soil from compaction due to rainfall impact and by creating root channels that aid water penetration. Furthermore, land slope affects infiltration; steep slopes lead to faster runoff, reducing the time water has to infiltrate. Human activities, such as urban development, can significantly reduce infiltration rates by increasing impervious surfaces.
Overland flow is significant in shaping river landscapes as it contributes to erosion, sediment transport, and the modification of river channels. When water flows over the land surface, it can erode soil and transport these sediments downstream, affecting river morphology. Overland flow is particularly influential during heavy rainfall events or when the ground is impermeable or saturated, leading to increased runoff. This process can lead to the development of gullies and contribute to the widening and deepening of river valleys. In urban areas, enhanced overland flow due to impervious surfaces can increase flood risks and alter natural river processes.
Practice Questions
Transpiration is a critical process in the drainage basin's hydrological cycle, where water is absorbed by plant roots and eventually released as water vapour through the leaves into the atmosphere. This process contributes significantly to the atmospheric moisture, which later condenses to form clouds and precipitates back to the Earth's surface. Transpiration helps in regulating the flow of water within the basin, maintaining ecological balance, and influencing weather patterns. It's an integral part of the water cycle, linking the terrestrial and atmospheric components. An effective understanding of transpiration is essential for managing water resources and predicting environmental changes.
Soil storage plays a vital role in the drainage basin system by temporarily holding precipitation, thereby moderating river discharge. Water held in the soil contributes to groundwater recharge and sustains base flow in rivers, especially during dry periods. The capacity of soil to store water is influenced by its texture, structure, and organic matter content. High soil moisture can reduce surface runoff, thereby decreasing the risk of flooding. Conversely, when soil storage capacity is exceeded, it can lead to increased overland flow, significantly impacting river discharge. Understanding soil storage dynamics is key to managing water resources and flood risk.
